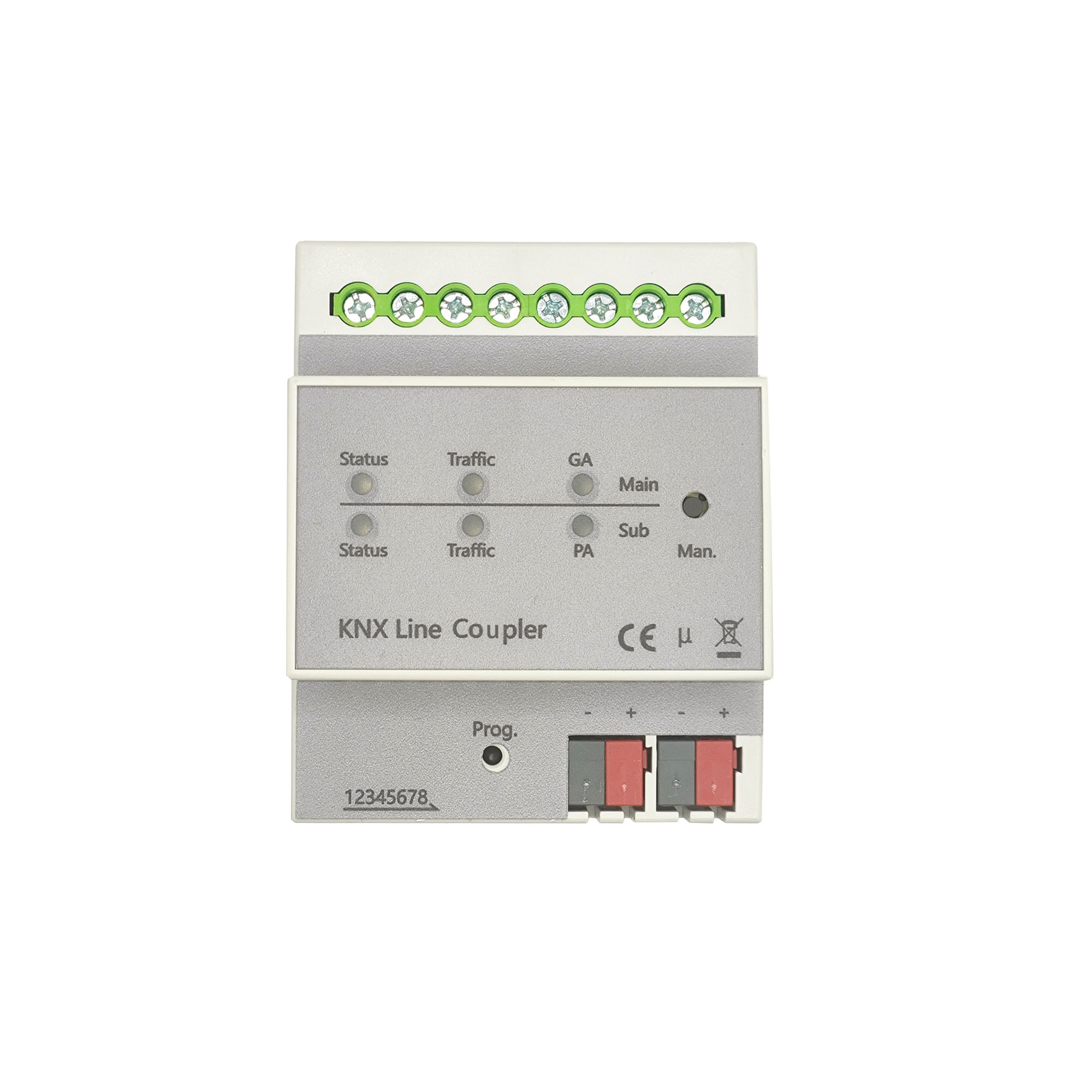

KNX Line Coupler
This product is a line coupler or repeater (amplifying signal), and when the device is used as a line coupler, it can be connected to other lines or trunk lines. The separated wires require a
- Model： IMLC-0001.1
- Size： 74 x 92 x 65mm
This product is a line coupler or repeater (amplifying signal), and when the device is used as a line coupler, it can be connected to other lines or trunk lines. The separated wires require a different KNX power supply. The wire coupler has a galvanic isolation function, and the line coupler can filter the telegrams between the two lines, reduce the amount of telegrams, prevent interference, and maintain smooth communication.
Line coupler or repeater (amplifies signal)
Requires a different power supply
Galvanic isolation
Telegram filtering
Reduce telegrams
Work indicator display
Bus voltage | 21...30 V DC |
Current consumption | < 12 mA |
Power consumption | Max. 360 mW |
Manual button | Manual button |
Programming button | Enter/exit programming mode |
Programming Indicator led | When the programming button is pressed, the red indicator led turn on |
Installation | 35mm DIN Rail |
Shell / color | Gray |
Operation | – 5℃ ... + 45℃ |
Storage | – 25℃ ... + 55℃ |
Transport | – 25℃ ... + 70℃ |
Humidity | <93%,except dewing |
Paper Box
