Button Panel, P Series

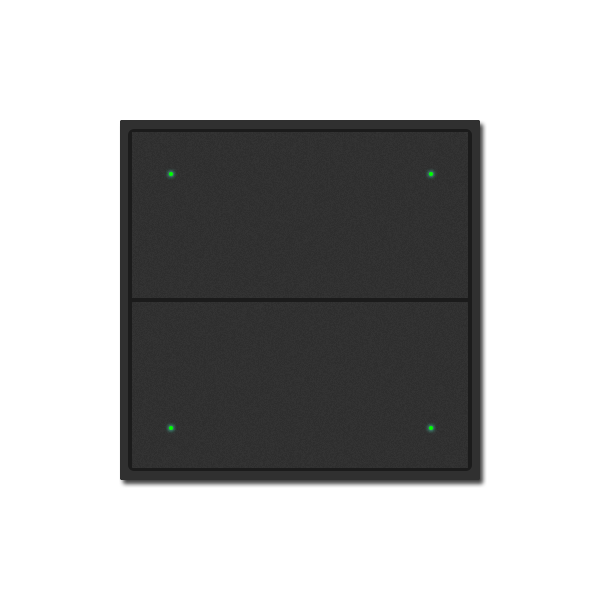

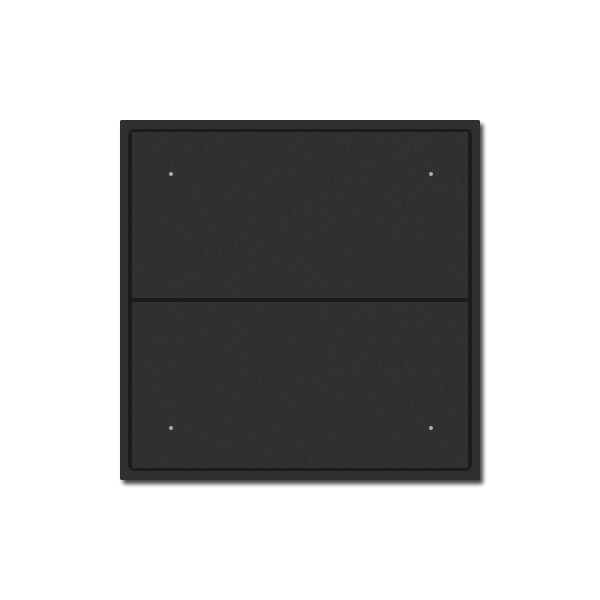

KNX Push Button Panel, 4 Buttons

This product can be used to control actuators such as switches, curtains, and dimming. It can be installed as a system through the EIB/KNX bus and the actuator module.The main functions of the product

  • Model: IMPB-0800.2
  • Size: 86x86x38mm

This product can be used to control actuators such as switches, curtains, and dimming. It can be installed as a system through the EIB/KNX bus and the actuator module.

The main functions of the product are summarized as follows:
Switch function
Shutter function
Dimming function
Value sending function
Recall and store scene function
Sequence function
LED function indication and word light indication function
Logic function

POWER

Bus power

21-30V DC, obtained through EIB bus


EIB/KNX current consumption

<12mA


EIB/KNX power consumption

<360mW


Auxiliary power supply

21-30V DC


Power consumption

<1.5W

Operation

instruction

Red LED and button

Programming physical address


Green LED

Indicates that the application layer is working properly

Temperature range

Work

 –5°C ... 45°C


Storage

–25°C ... 55°C


Transport

–25°C ... 70°C

Design

Embedded installation equipment




size


86×86mm

Installation

Standard 86 box wall mounting method


Weight

0.15KG


Shell/color

custom made


Paper package
