Button Panel, R Series

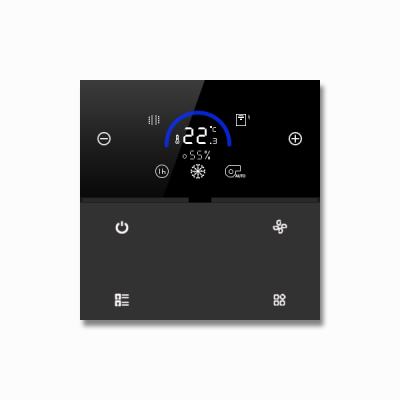

KNX Thermostat Panel With 4 Buttons

This thermostat can be used to control VRV air conditioning, floor heating and fresh air. The panel installation method adopts the standard 86 box wall installation method.The main functions are as fo

  • Model: IMRT-0401.1
  • Size: 86x86x36mm

This thermostat can be used to control VRV air conditioning, floor heating and fresh air. The panel installation method adopts the standard 86 box wall installation method.

The main functions are as follows:

  • Realize VRV air conditioning, floor heating and fresh air three-in-one system control

  • LCD display operation display function

  • Indoor temperature collection, temperature setting function

  • The VRV system can output four modes of cooling, heating, ventilation and dehumidification

  • The VRV system can output high, medium and low wind speeds as well as automatic wind speeds.

  • The floor heating system can output 1byte or 1bit control value according to the set temperature and actual temperature

  • The fresh air system can output high, medium and low wind speed functions as required.

  • All three systems are equipped with 4 sets of scene functions.


Bus voltage

21...30 V DC, bus supplied

 Bus current consumption

< 12 mA

Bus power consumption

 Max. 360 mW

Auxiliary voltage

           12-30V DC

Auxiliary power consumption

  < 1.5W

Programming button

Assign physical address

Programming indicator

The red light allocates physical addresses, the green light flashes, and it runs normally

Reset button

Reset screen display

IP protection

IP20 EN60592

installation

  86 bottom case installation

Length, width and height

                      86X100X38(mm)

weight

1.5kg

Work temperature

– 5 °C ... + 45 °C

Storage temperature

– 25 °C ... + 55 °C

Transport temperature

– 25 °C ... + 70 °C

humidity

<93%, except for condensation











Paper package
